Hydraulic Excavator | buckets
Extreme Duty Buckets

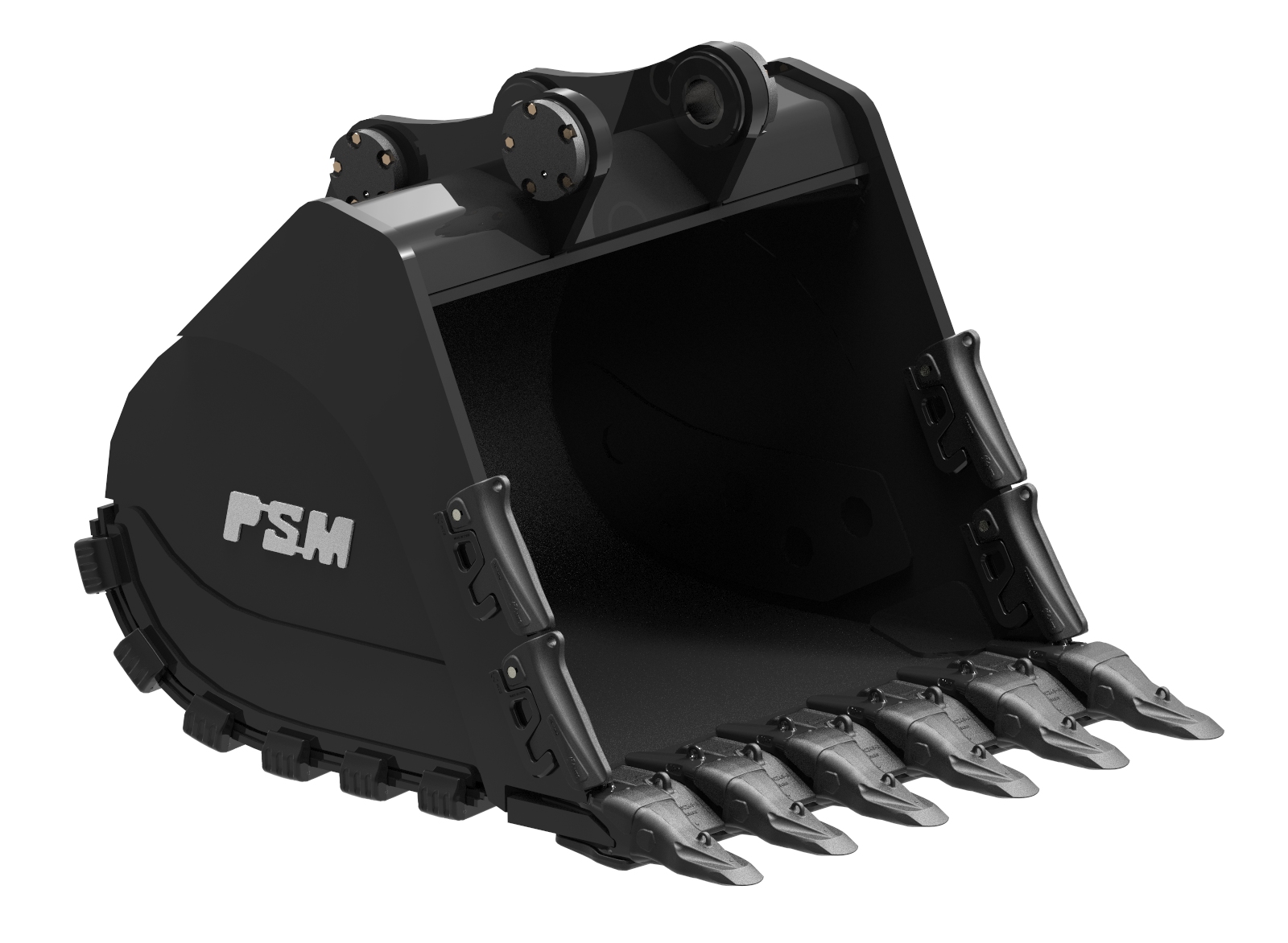

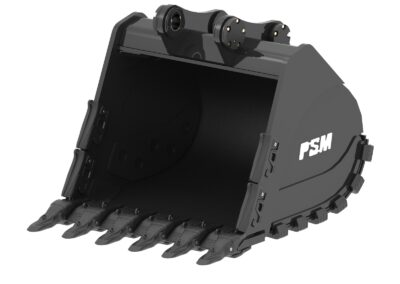

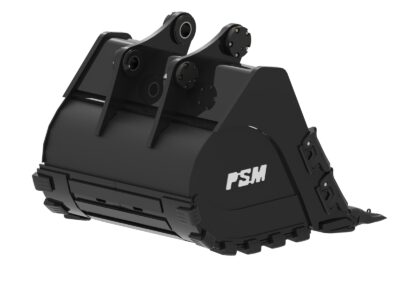

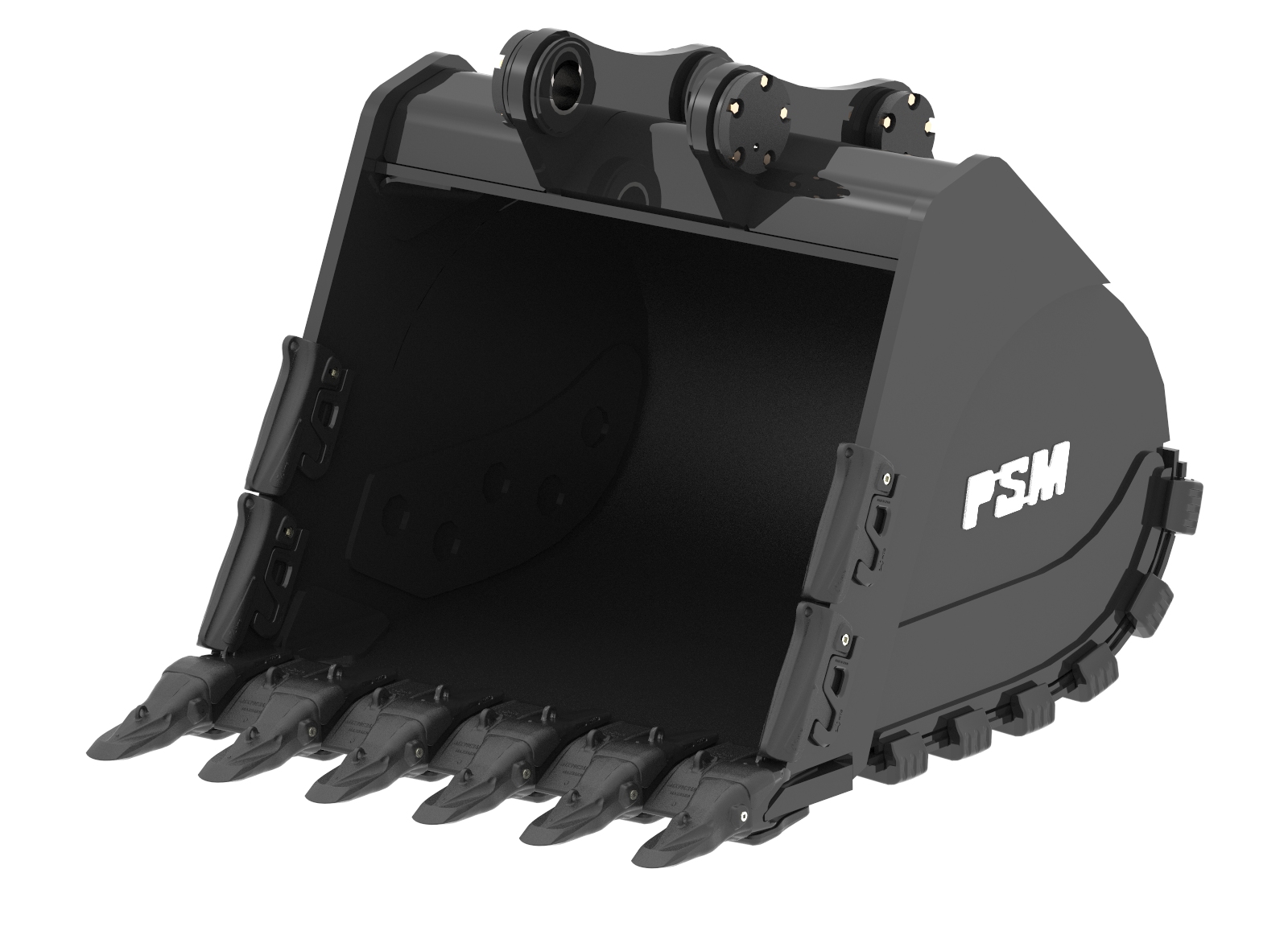

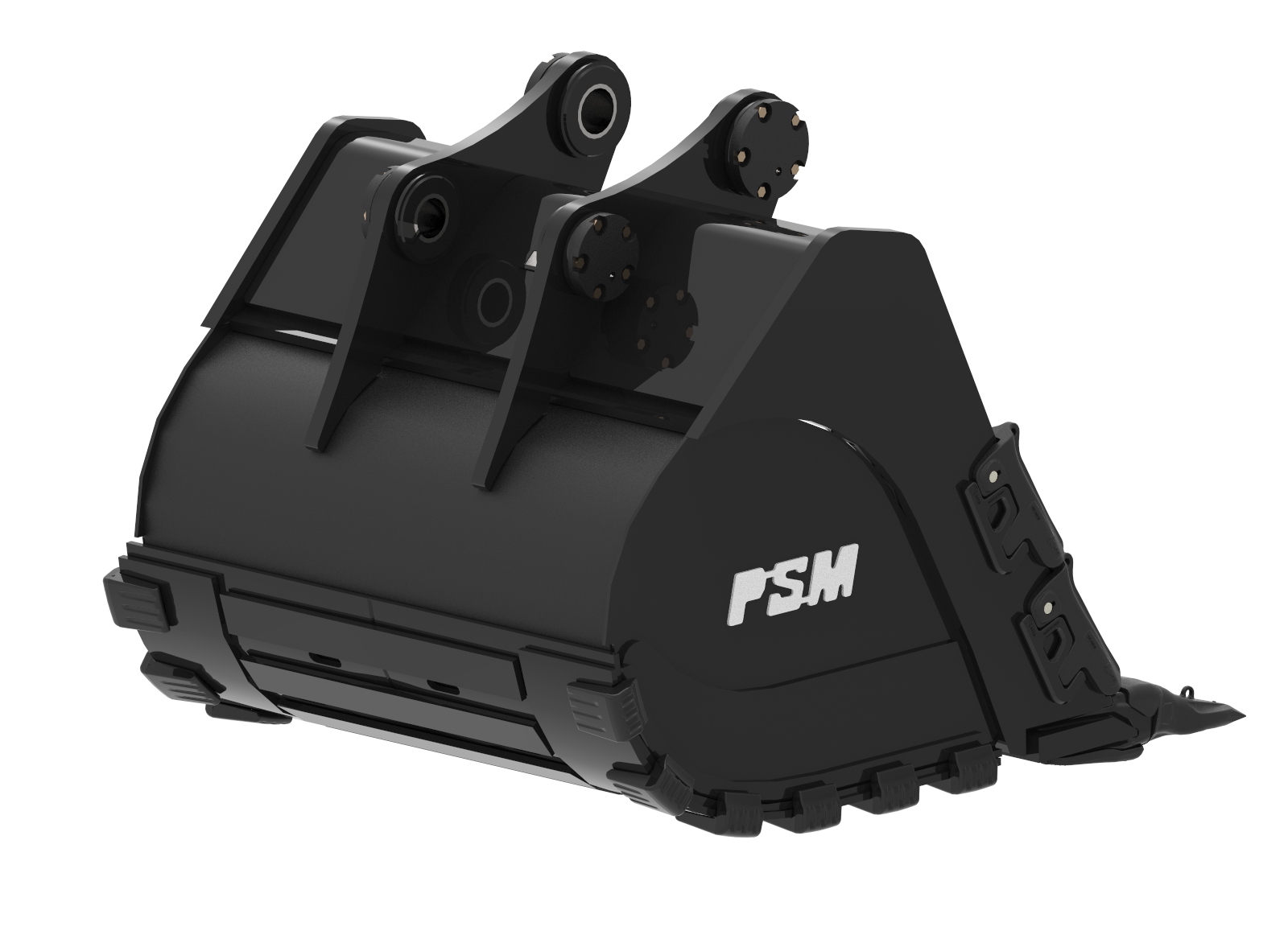

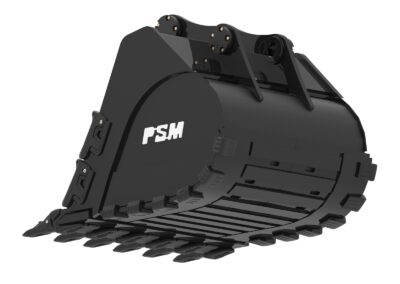

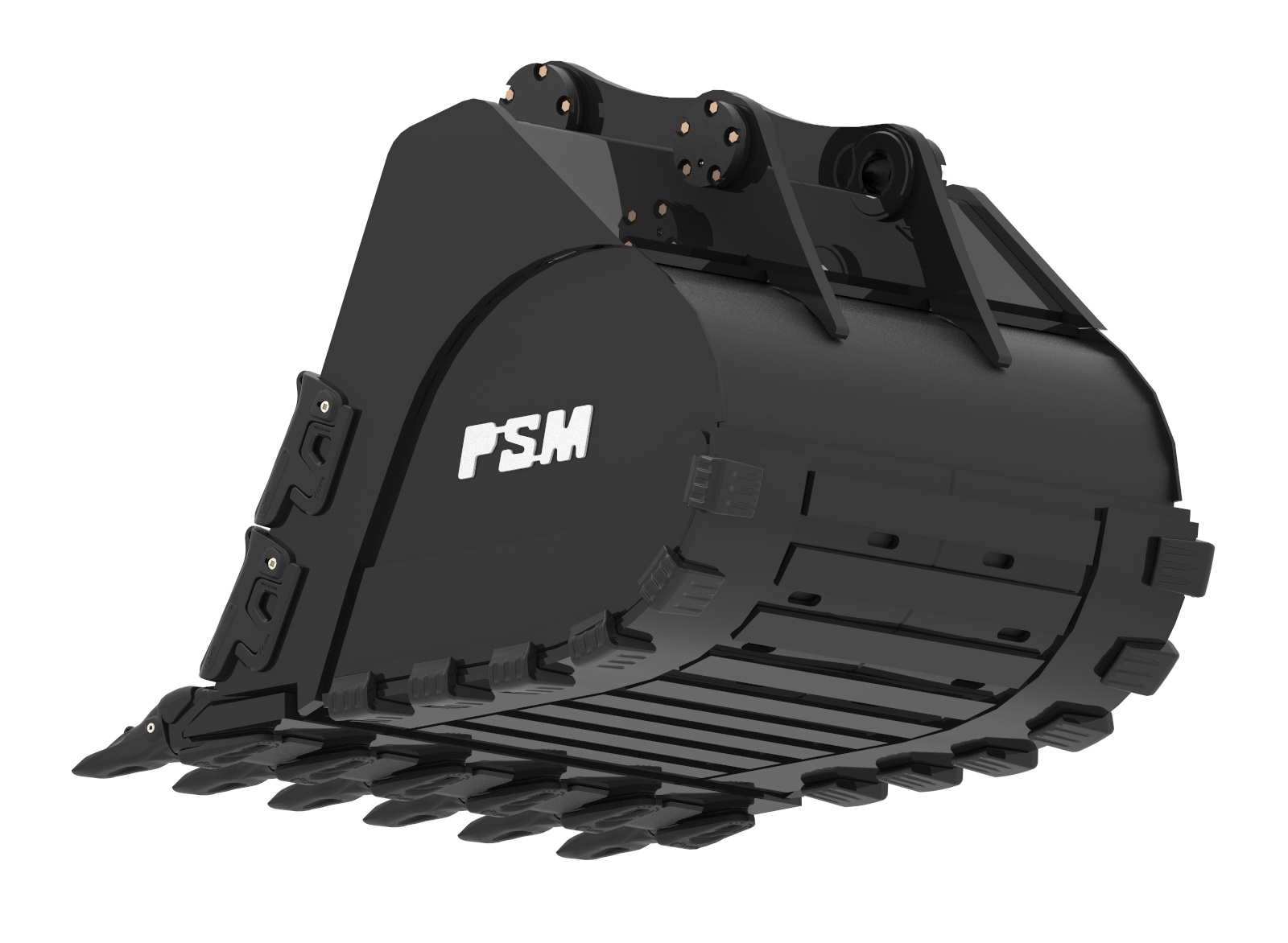

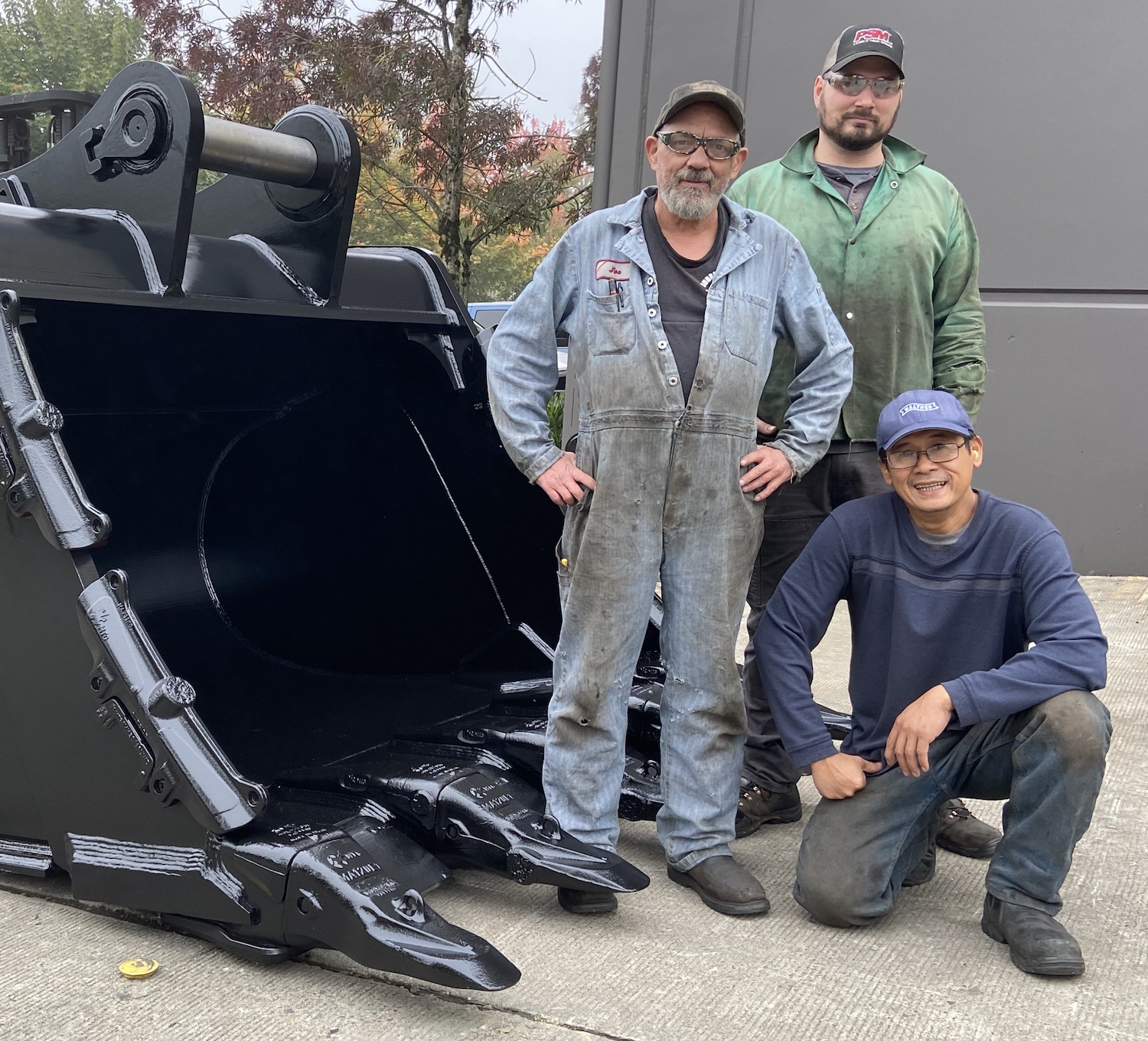

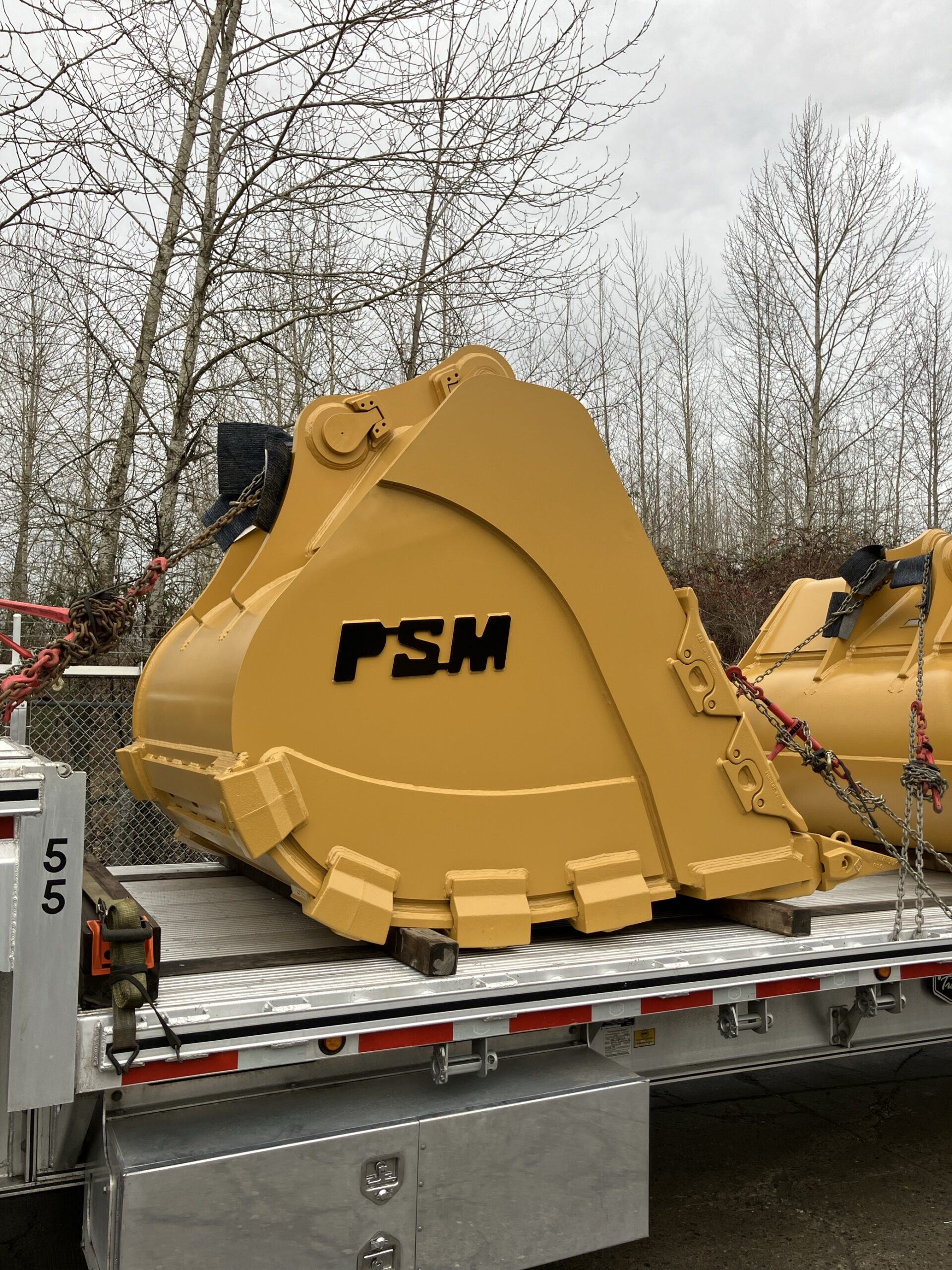

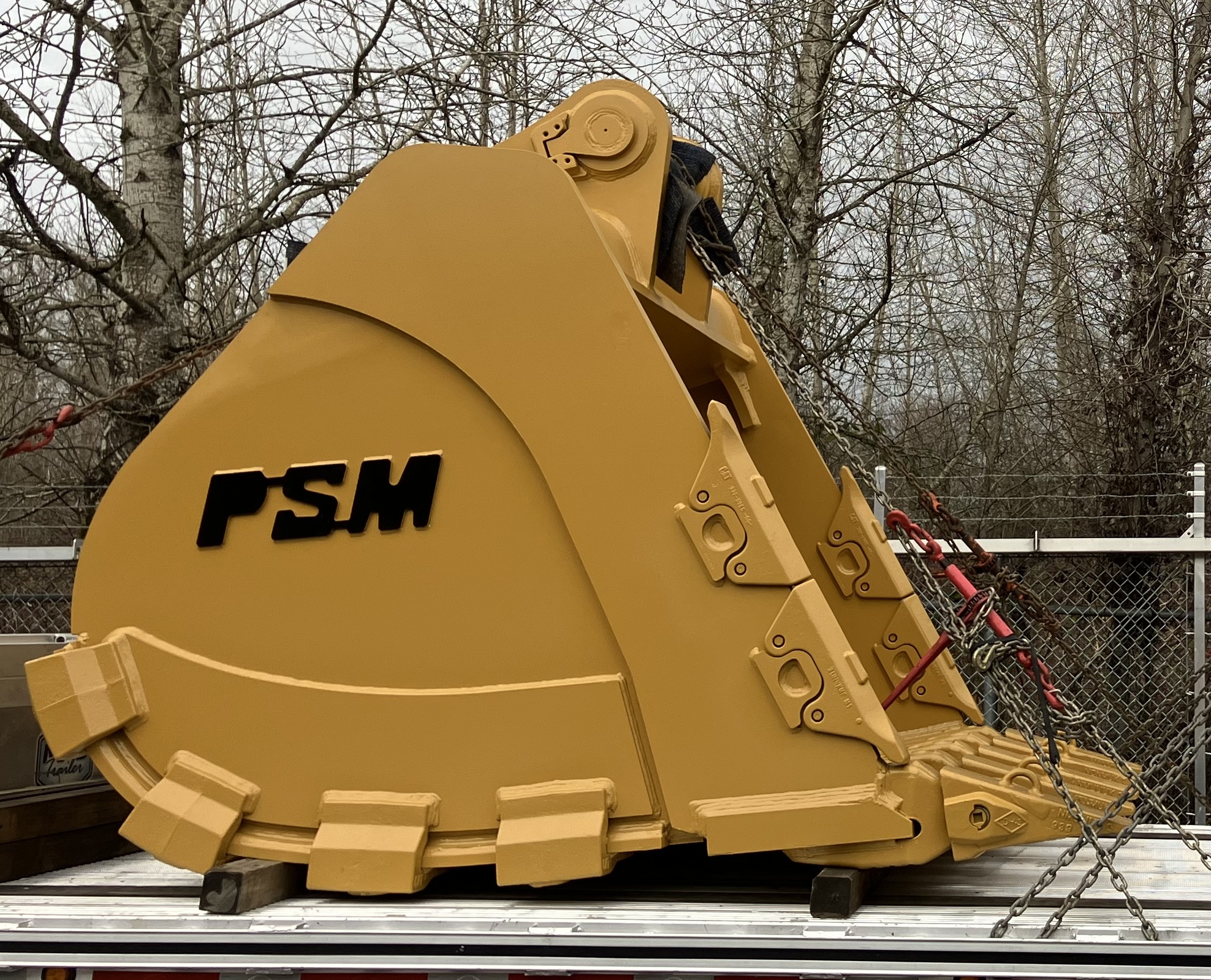

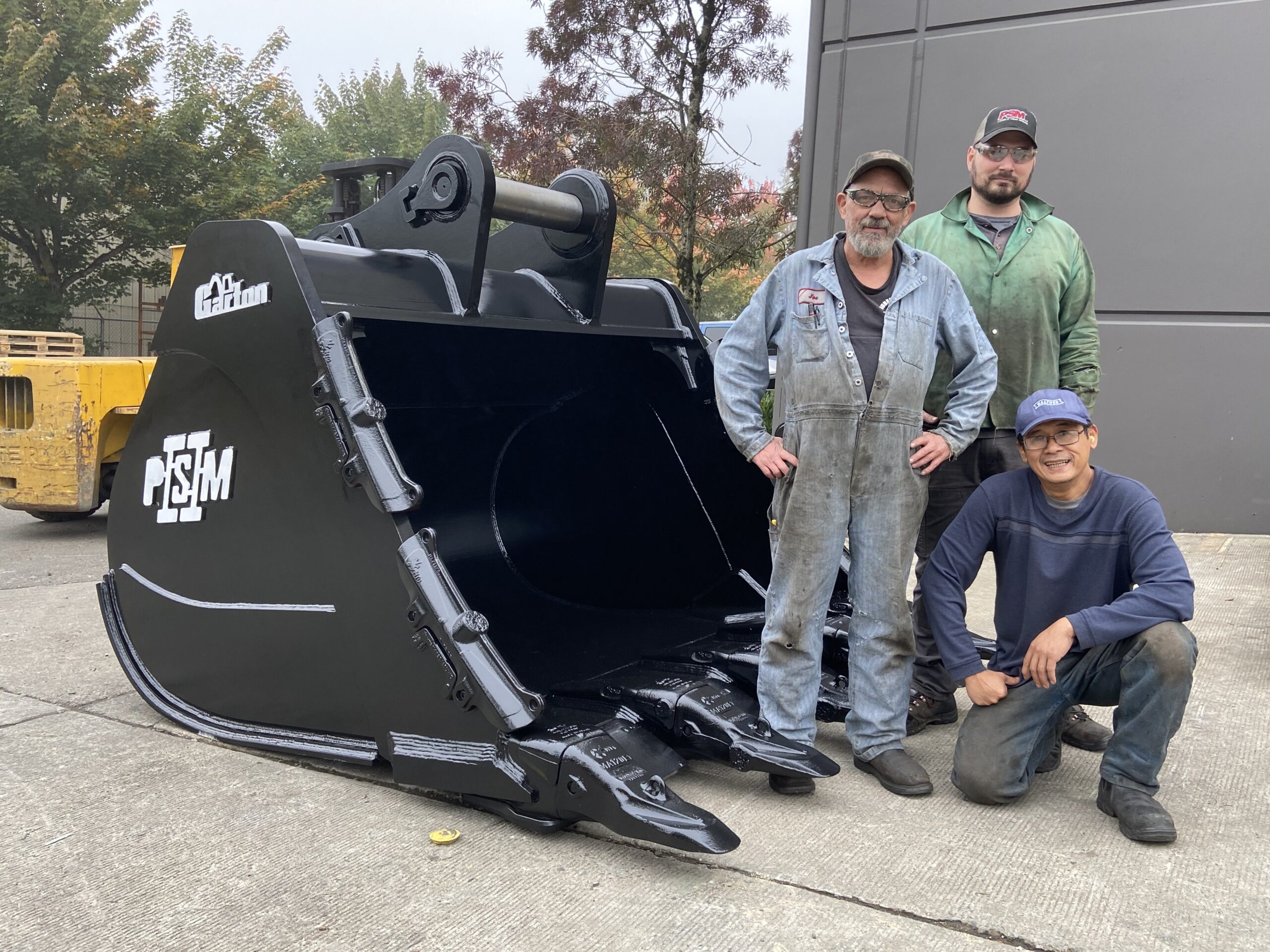

Extreme Duty (XD) bucket with Half Arrow Tip (HAT) between teeth, leading edge guards, and heel shrouds for the toughest applications. Engineered and manufactured for the most demanding applications from demolition to rock and quarry.
specifications
- Side wear plates
- Full double bottom wear plate for maximum wear
- Wraparound leading edge for strength and durability
- Leading and cutting edges constructed of T-1 steel
- Leading Edge Guards

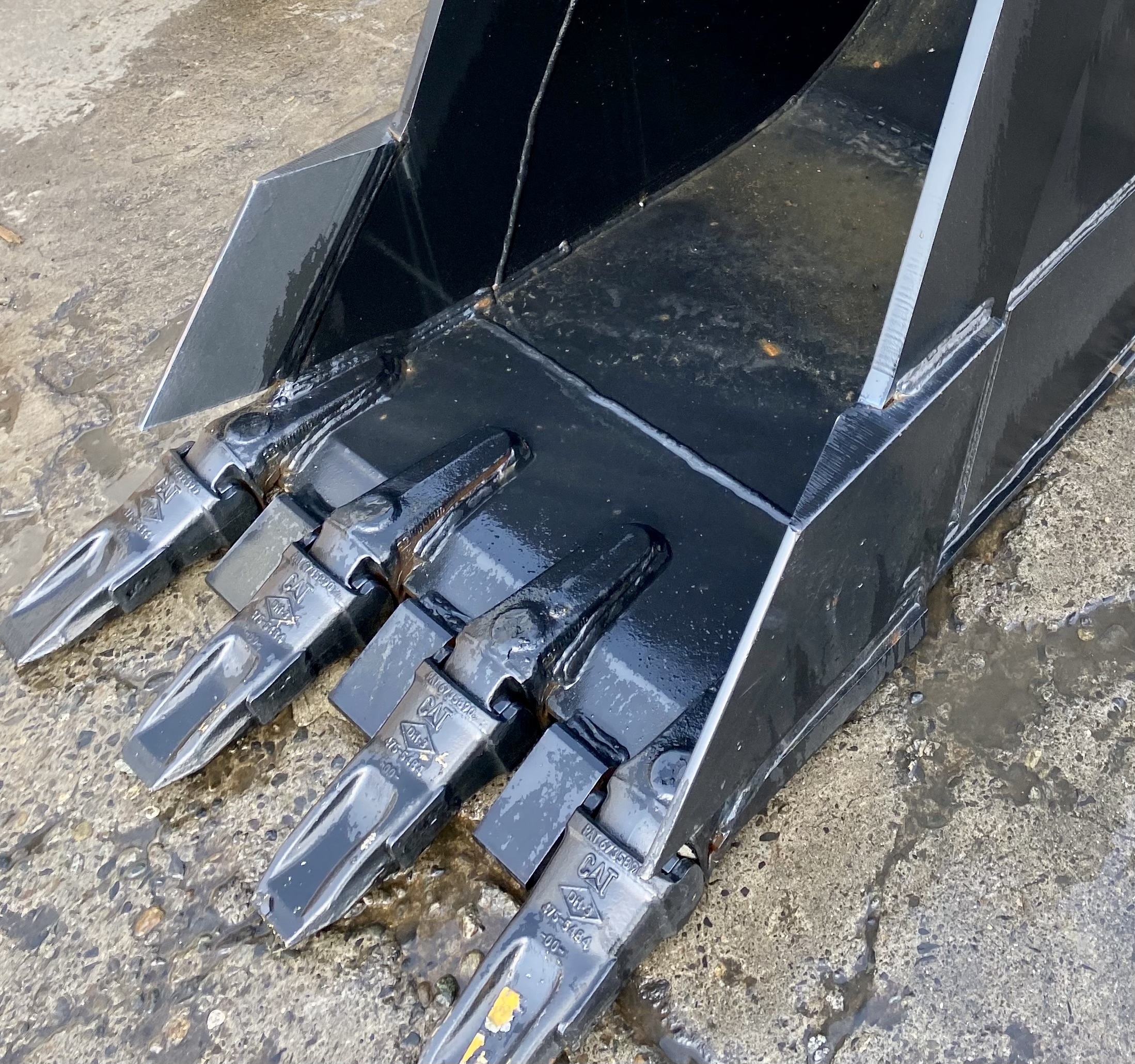

- HAT/wear segments between teeth
- Heel Shrouds
- Horizontal wear bar package
options
- Internal shell liner
- Internal side wear plates
- External rear shell plate protector
Demolition Package
Designed for optimum performance in tough demolition environments.
- Choice of teeth
- Replaceable leading edge shrouds
- Bimetallic wear parts
- Thru-welded lugging
- Replaceable wear plates
- Cast leading edge protection over T-1 cutting edge
- Easily replaceable cast wear components protecting T-1 structure bucket
- One piece replaceable outer wear plate (double bottom) with abrasive resistant wear strips forming triple bottom protection
more

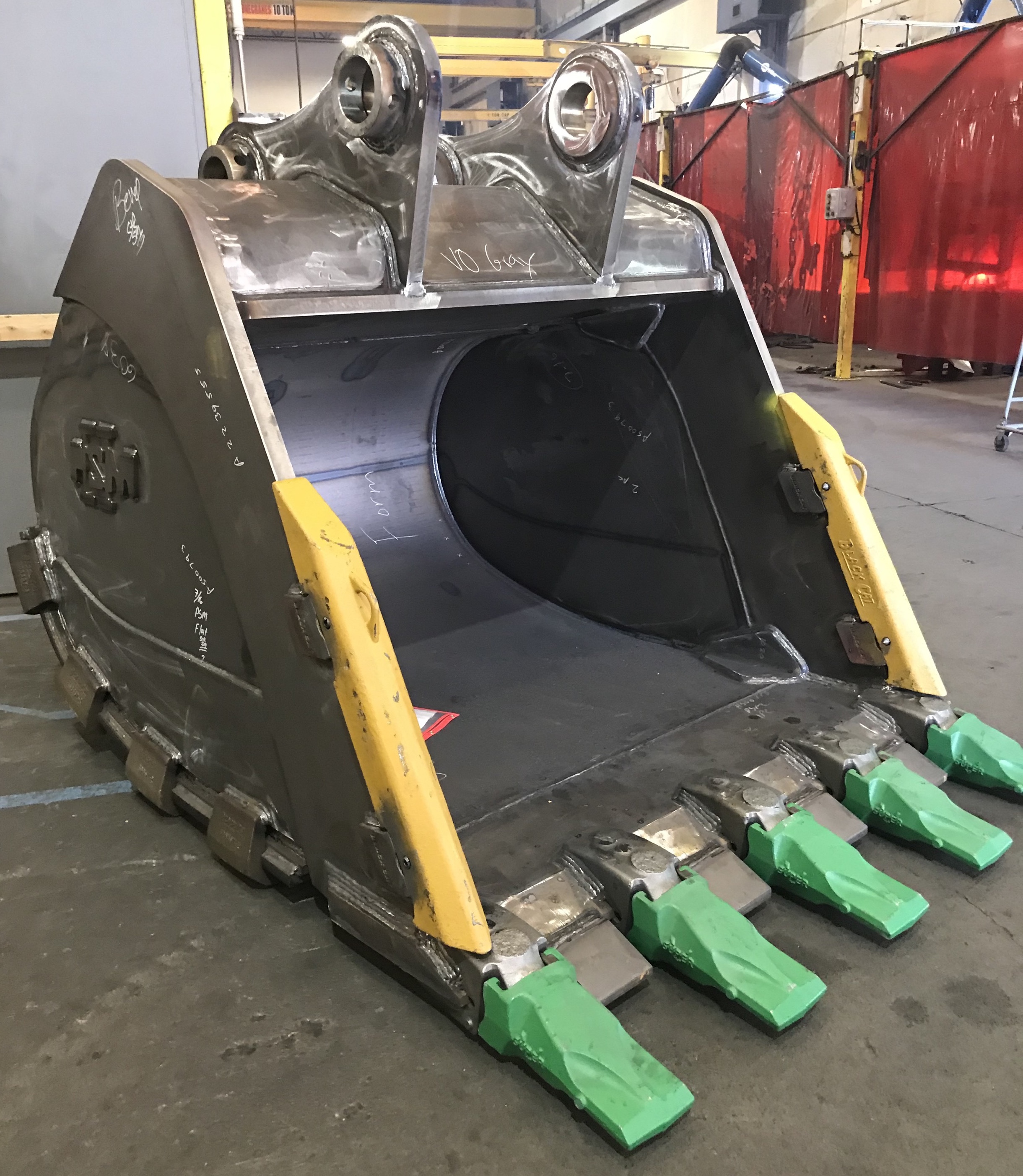

In-process photo of PSM Road Builder Bucket before paint shows the key features for the toughest environments. These include HAT/wear segments between teeth, full double bottom wear plates, and wrap-around leading edge.
